Large area light POWERCASE L 230V AC on/off 102 200 lm with IP68 plug

Product overview

The SONLUX POWERCASE L (80C03001-0006) is a high-output, ready-to-deploy large-area luminaire that combines serious light performance with a transport-friendly “case” format. It is built for crews who need fast setup, predictable coverage, and a rugged fixture that can travel daily without drama. Instead of arriving as a loose panel that needs careful handling, POWERCASE L arrives as a compact unit that opens into a powerful lighting tool for job sites, public works, maintenance, and emergency support.

This version is the on/off model and is supplied with a Type E+F (CEE 7/7) plug rated IP68. That detail matters where water, mud, or frequent wash-down conditions can punish ordinary connections. The luminaire itself is rated IP65, and the robust housing design helps it remain dependable when the environment is not friendly.

Case-style concept: transport first, light where it is needed

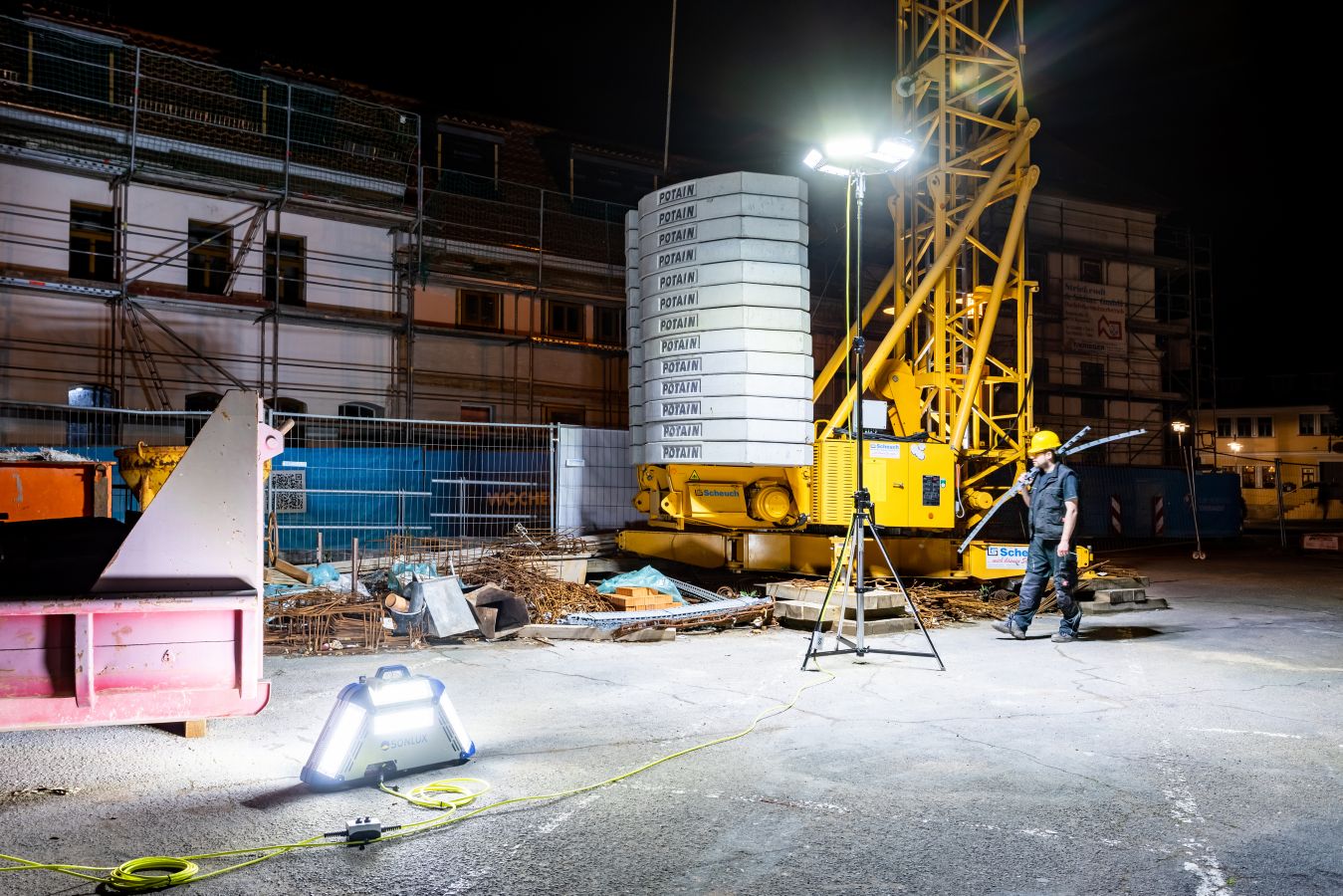

POWERCASE L is designed around a simple idea: the light should be easy to carry, quick to place, and immediate to use. The integrated carry concept and the foldable geometry reduce the time between “arrival” and “working illumination”. You can run it in a folded floor position for direct area lighting, open it on a tripod for broader reach, or suspend it when the footprint below must remain clear.

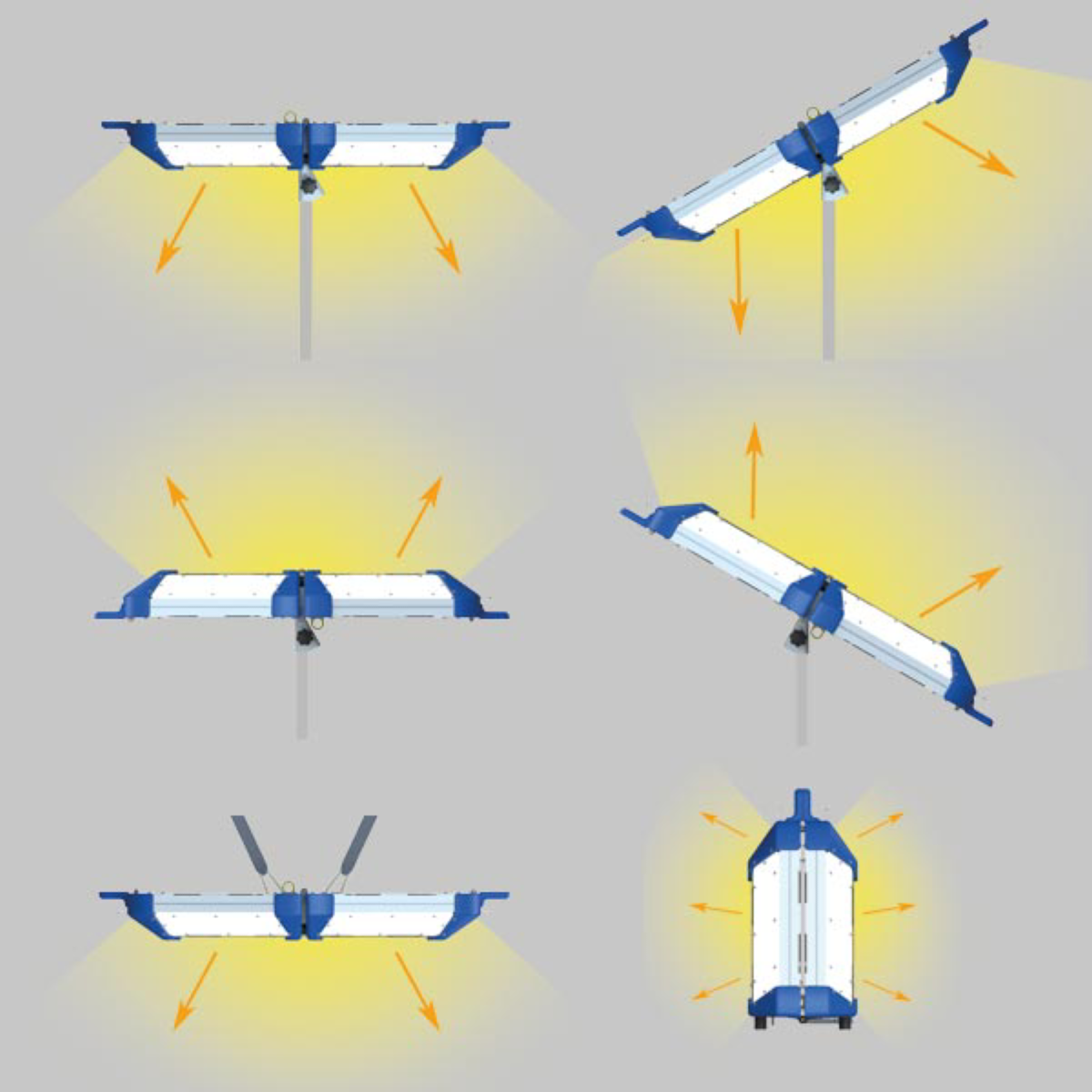

Three deployment modes for real workflows

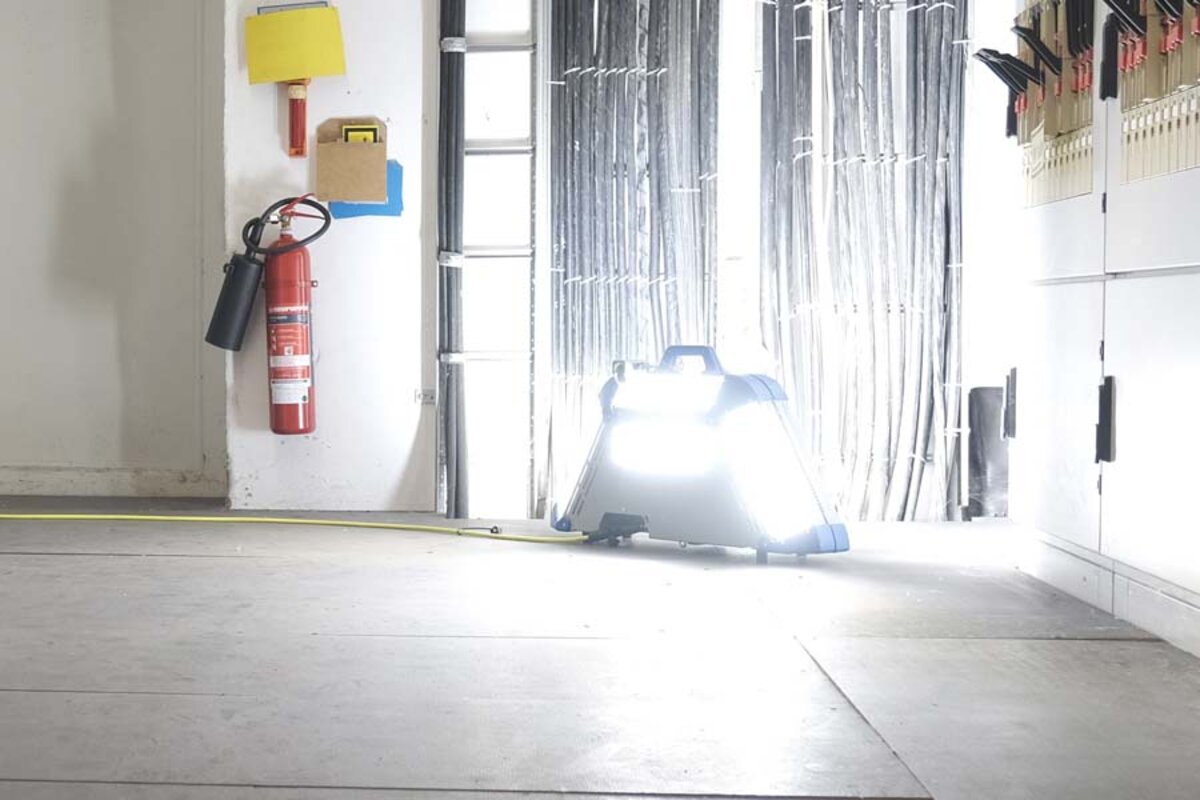

• Folded on the floor for fast, low-position lighting and controlled glare in tighter zones.

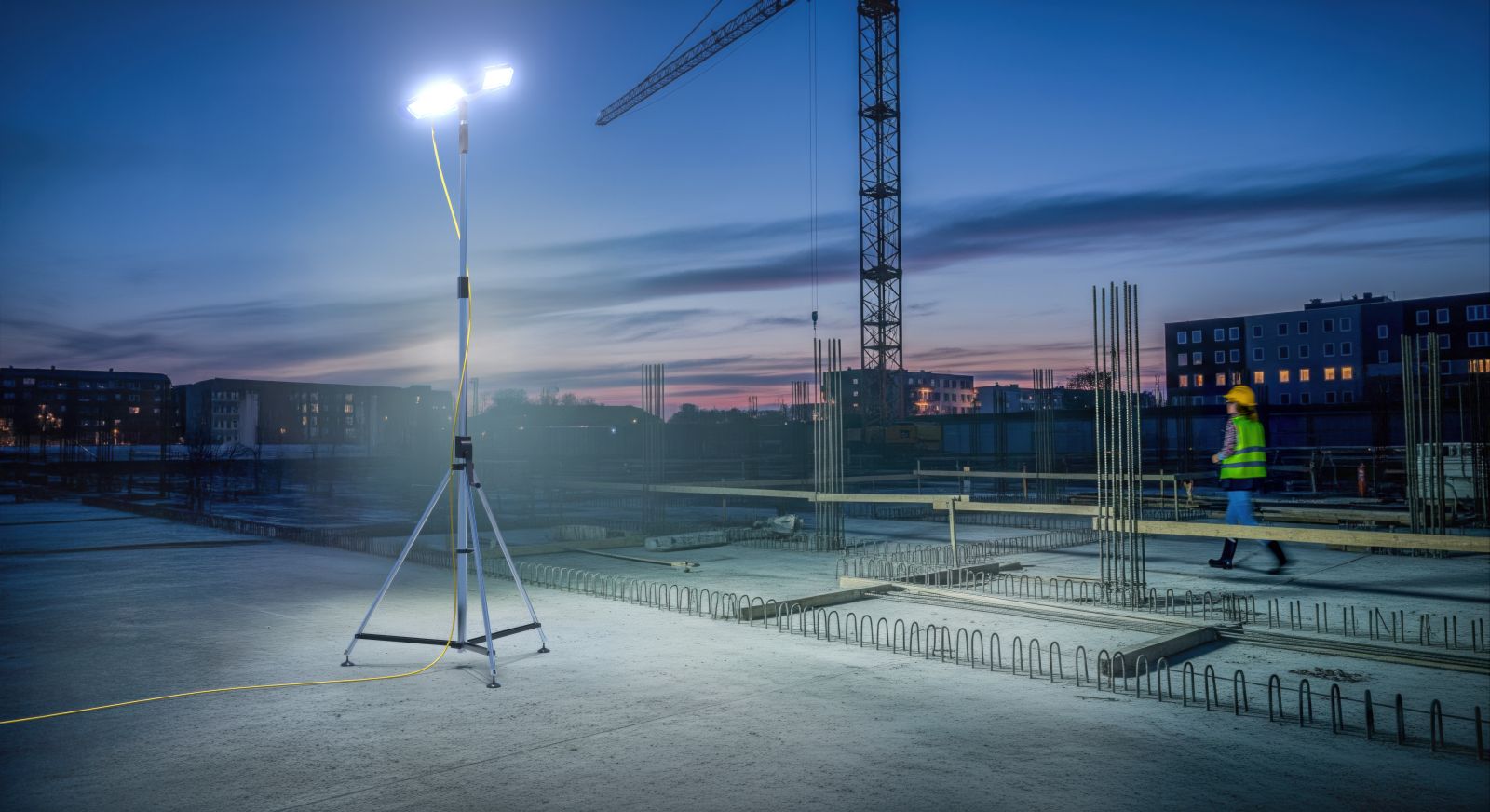

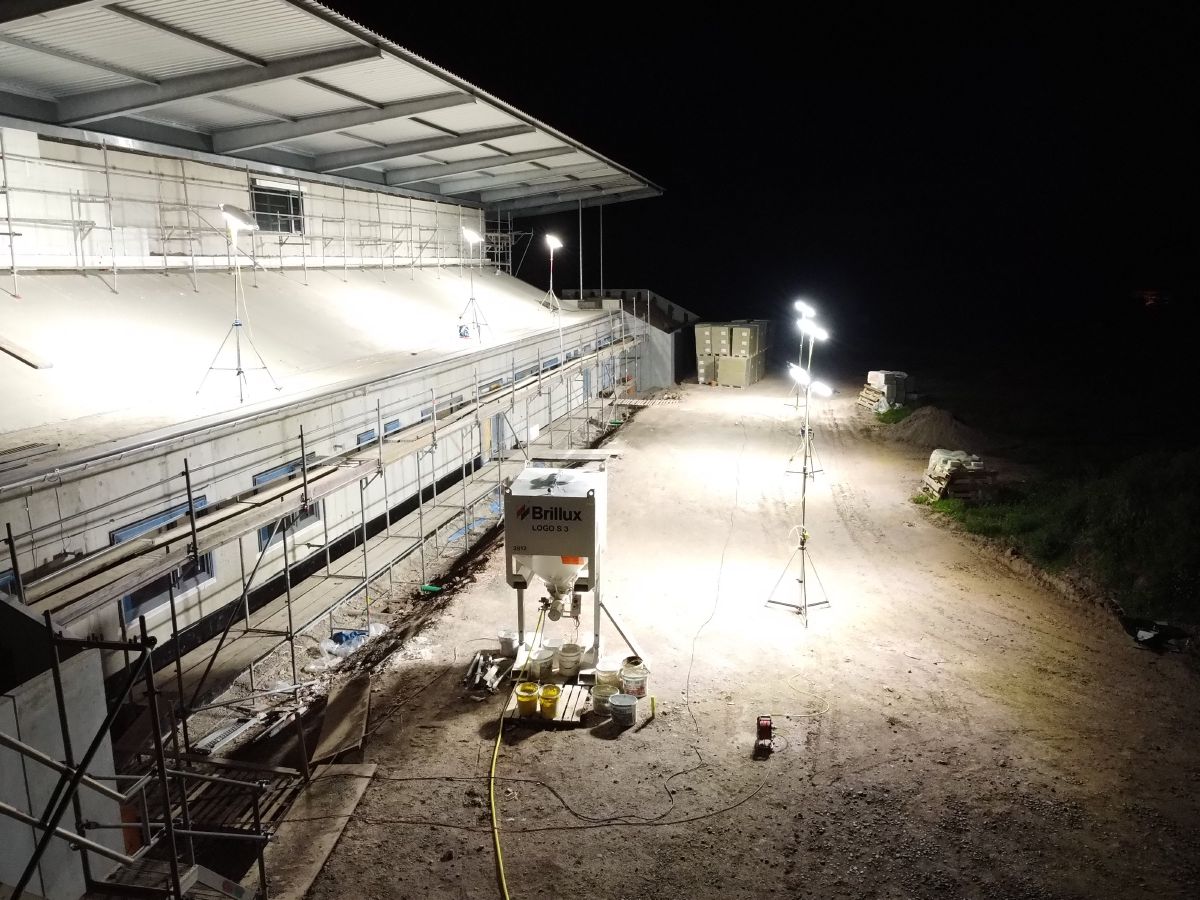

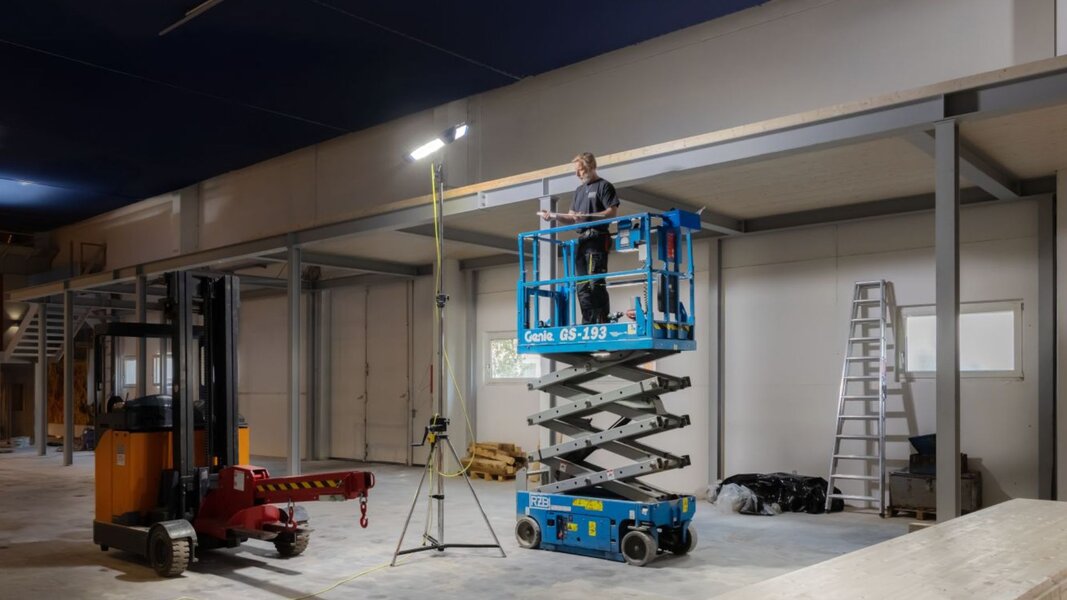

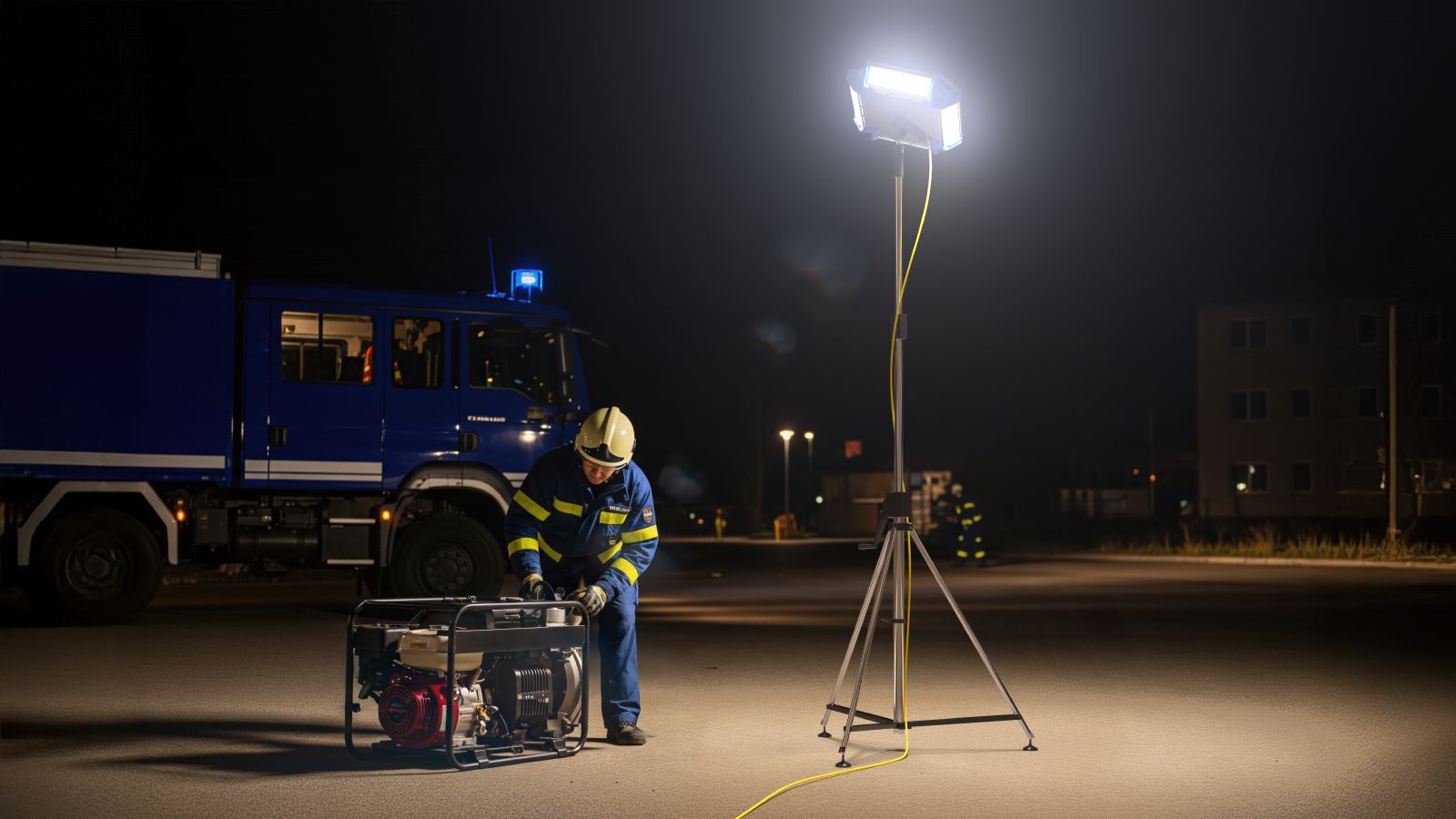

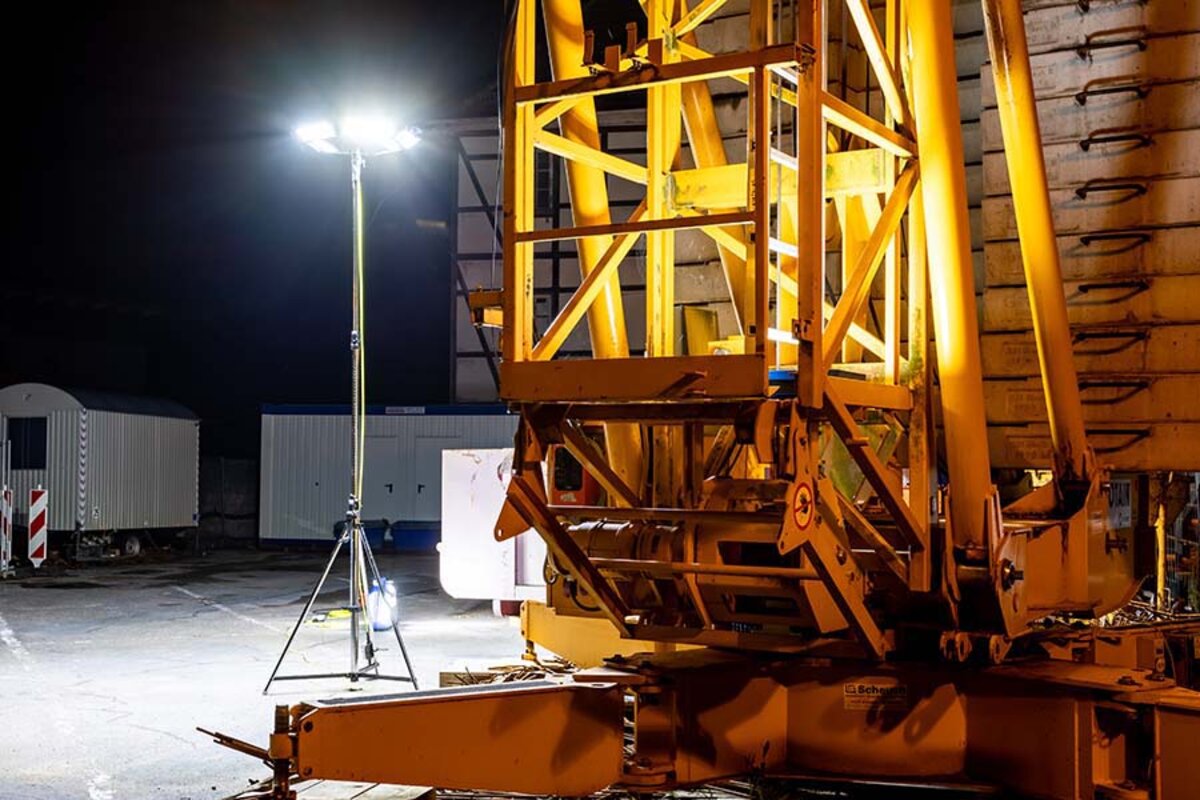

• Unfolded on a tripod to lift the light, widen coverage, and reduce shadows around vehicles, machines, and barriers.

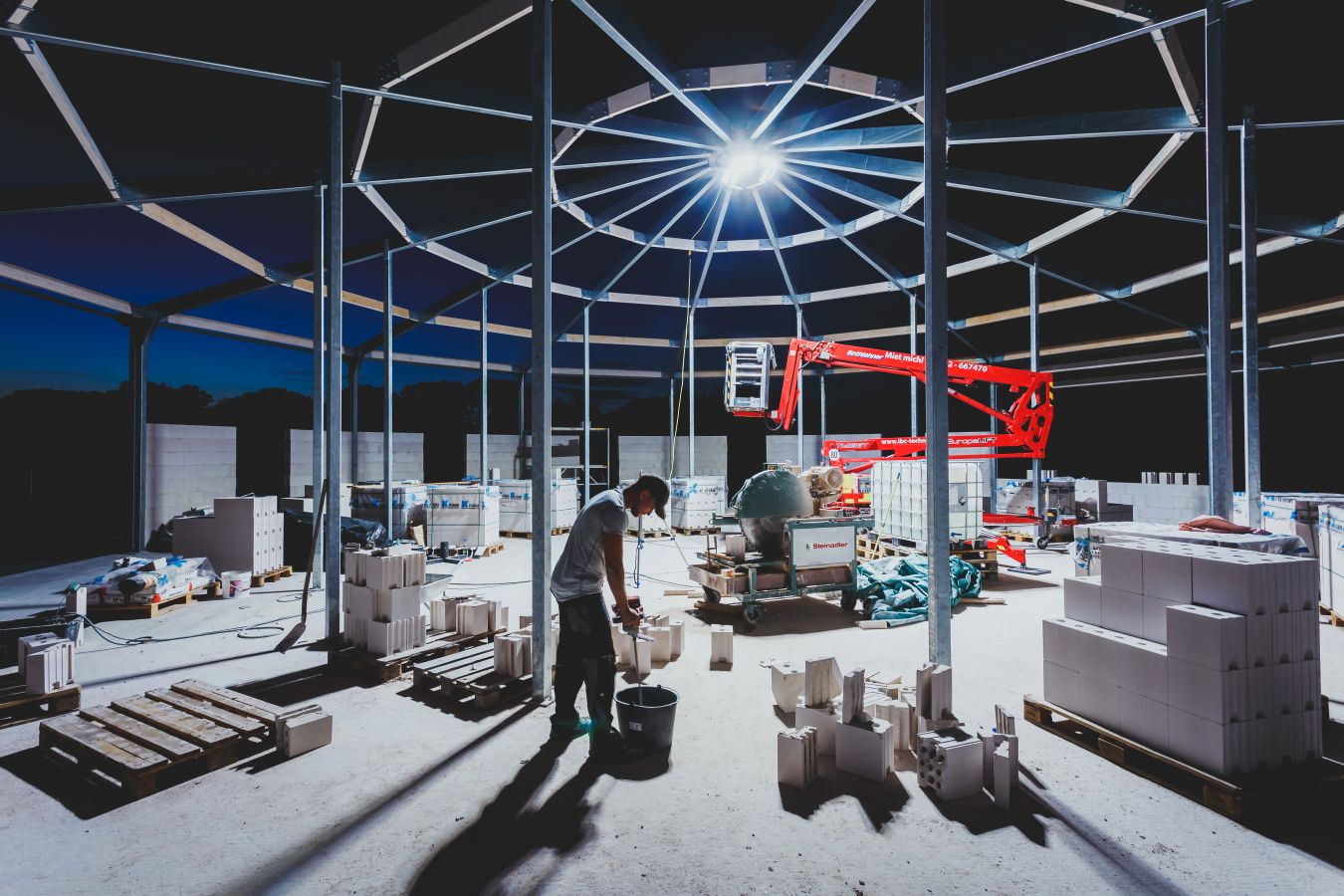

• Hanging installation when you need a clear ground area or want the luminaire out of traffic paths.

Optics and coverage: wide-area illumination with controlled glare

Large-area lighting is not only about lumen numbers. It is also about how the light is shaped and how comfortable it is to work under. POWERCASE L uses high-efficiency LED units and clear polycarbonate lens optics to guide the output into a practical beam. The result is strong area lighting that supports visibility, orientation, and safe movement, especially in busy zones where operators, pedestrians, and equipment share the same space.

With a rated luminous flux of 102,200 lm at a daylight-like 5000 K and CRI 80, it helps maintain natural contrast for tasks such as inspection, assembly, cable work, and site coordination. The specified glare evaluation (RUG 31.9) reflects the reality of high-output fixtures: positioning and mounting height are key, and the included tripod adapter helps you aim and place the luminaire more intelligently.

Built for harsh environments

POWERCASE L is made for outdoor and industrial use where equipment must survive impact, moisture, and repeated handling. The powder-coated aluminium housing supports passive cooling and long service life. Corners are protected by plastic caps to reduce damage during loading, unloading, and repositioning. The fixture is rated IK08 for impact resistance and IP65 for protection against dust and water jets.

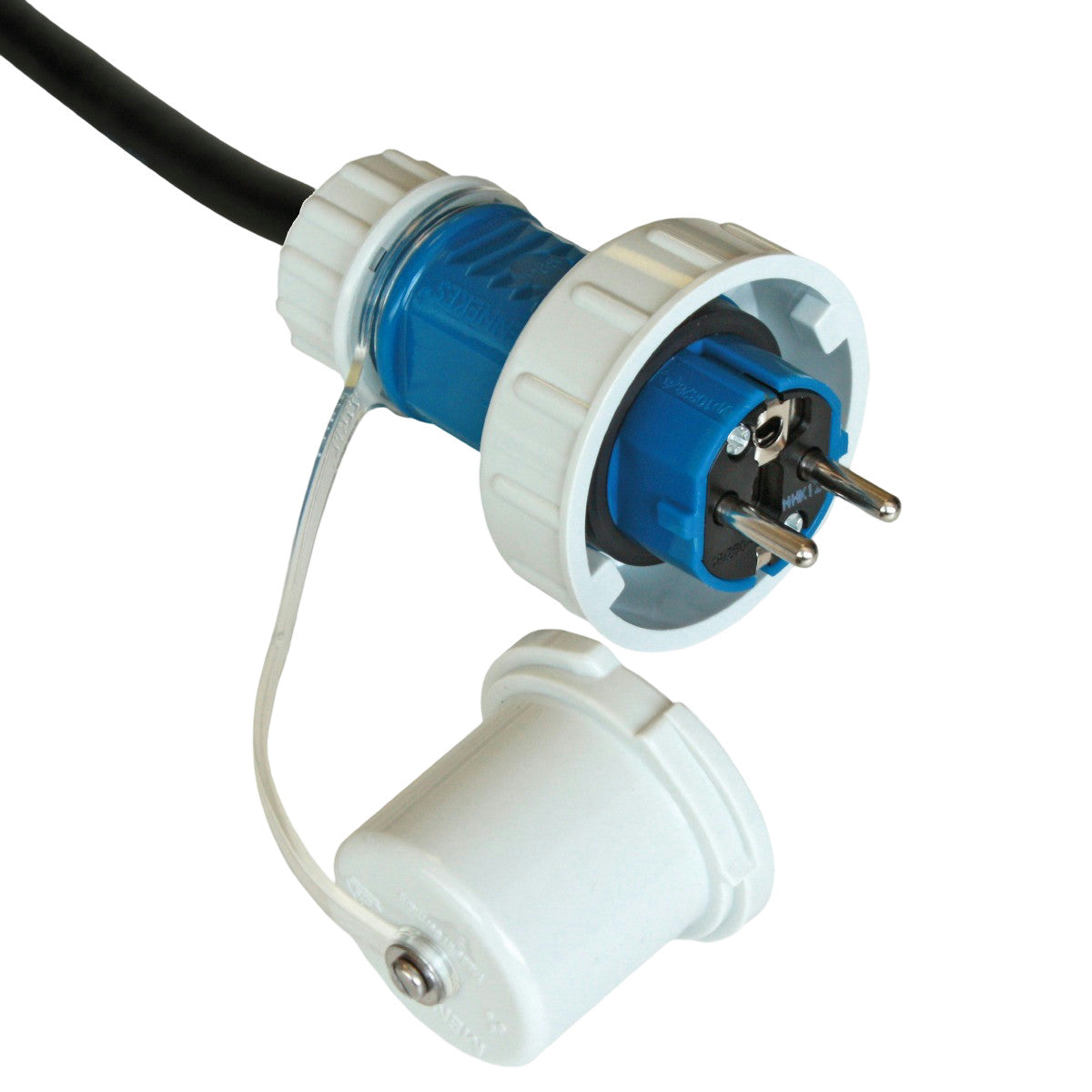

Connection reliability: IP68 plug on the supply cable

This model is supplied with a 10 m heavy-duty supply cable (H07BQ-F, 3 × 1.5 mm²) and a Type E+F (CEE 7/7) plug rated IP68. In practical terms, this improves reliability when the job is wet, muddy, or simply exposed. It also reduces the “weak link” feeling that often comes from ordinary connectors used in demanding conditions.

Mounting interface and aiming flexibility

To keep setups fast and repeatable, POWERCASE L includes a 30 mm spigot adapter that conforms to DIN 14640. You can mount it straight or with a 30° inclination. That small aiming option is valuable when you want to place the stand at the edge of a work zone while still delivering light exactly where it matters.

What is included

NOTE: The product includes the POWERCASE L luminaire, a 30 mm DIN 14640 spigot adapter (straight or 30° inclined mounting), and a protective cover to secure and protect the supply cable during transport. Tripods (masts) and any additional accessories are selected separately according to your lighting setup.

Basic technical specifications

Where this luminaire fits best

If your use case demands a single fixture that can flood a large zone with high-quality light and still be easy to transport, POWERCASE L is built for that exact job. Put it low when you need controlled spill, raise it when you need broad coverage, and rely on the IP68 plug when the environment is wet, messy, or unpredictable. The case-style form factor supports fast response and repeatable setups across multiple sites.

NOTE: The product includes only the lamp. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
