Large area luminaire POWERTUBE II L 230V AC dimmable

Product overview

The SONLUX POWERTUBE II L is a mobile large-area LED luminaire. It delivers soft 360° light. It is built for fast deployment. It works on a tripod, on the floor, or suspended. One unit can replace many small work lights. It reduces harsh shadows. It also reduces glare. This supports safer, calmer work.

Light output and quality

This L-size version targets demanding areas. The rated luminous flux reaches 50,000 lm. The opal polycarbonate cover spreads light evenly. The result is uniform, glare-reduced illumination. Colour temperature is 5000 K. CRI is 80. This helps with clear recognition of tools and hazards. The beam distributes 180° down and 180° up. It creates a wrap-around field, not a hard cone.

Control and power

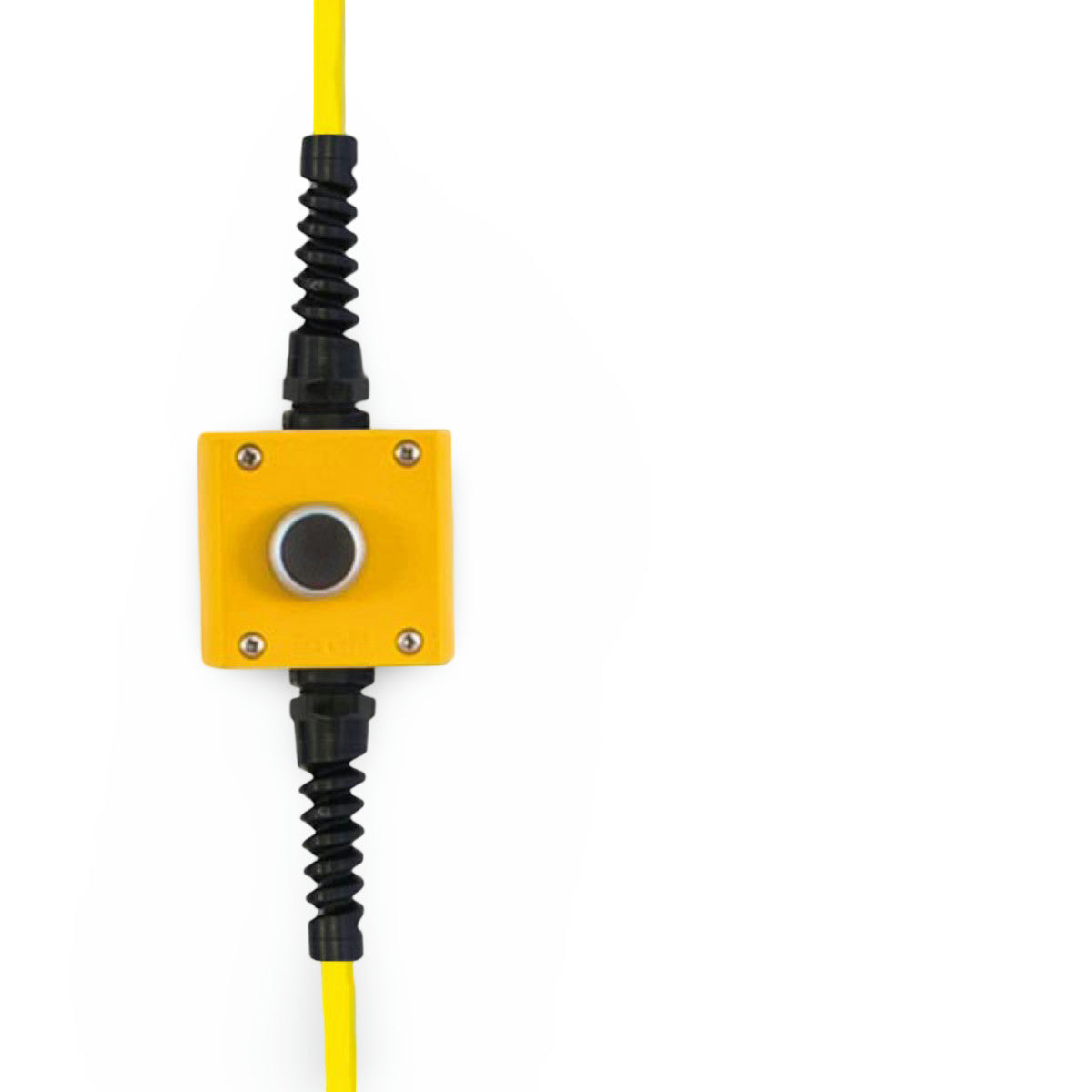

The luminaire uses a dimmable converter driver. Control is via DALI. It also supports on/off and dimming via a push-button. The button is placed in the supply line. This makes setup simple. You can match output to distance. You can also reduce reflections on wet ground.

Build, protection, and daily abuse

The housing is aluminium and powder-coated. The base plate is steel and powder-coated. Rubber feet improve grip and protect floors. Impact resistance is IK08. Protection against dust and water jets is IP65. This supports harsh site conditions. It can be used in rain and spray. It is built for transport and repeated setup cycles.

Passive thermal management

High output often means fans. Here, the design relies on passive heat management. No active cooling is needed. This reduces maintenance needs. It also reduces downtime risk. It supports quiet operation on events. It supports reliability during long shifts.

Mounting options and handling

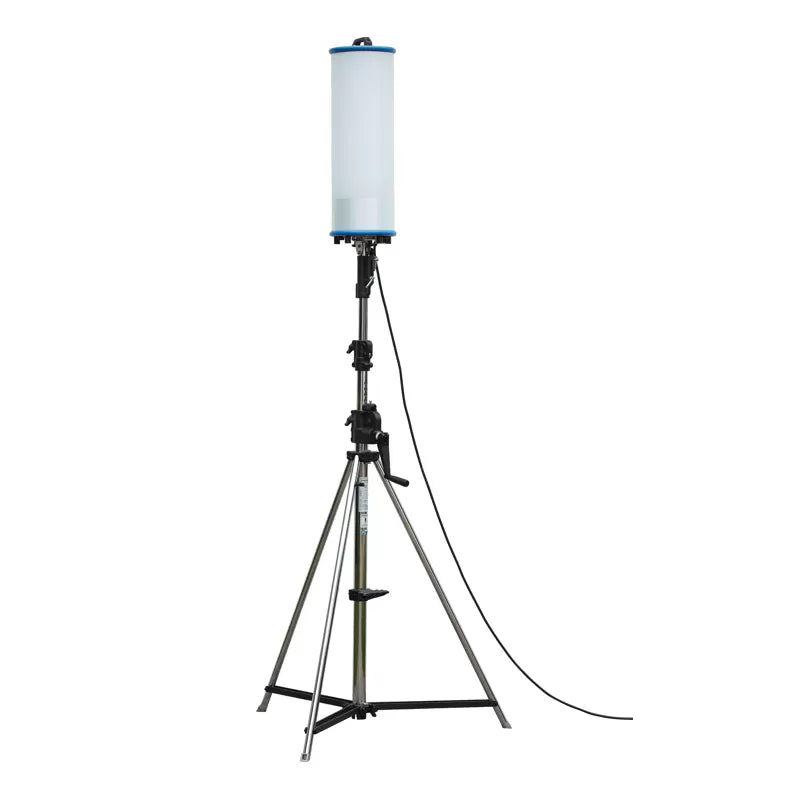

Setup is flexible. Use it as a floor luminaire with rubber feet. Mount it on a tripod using the integrated sleeve. The sleeve fits a 30 mm DIN spigot. It follows DIN 14640. You can also suspend it from the top handle. Use an optional strap for overhead placement. This helps when floor space is limited.

What is included

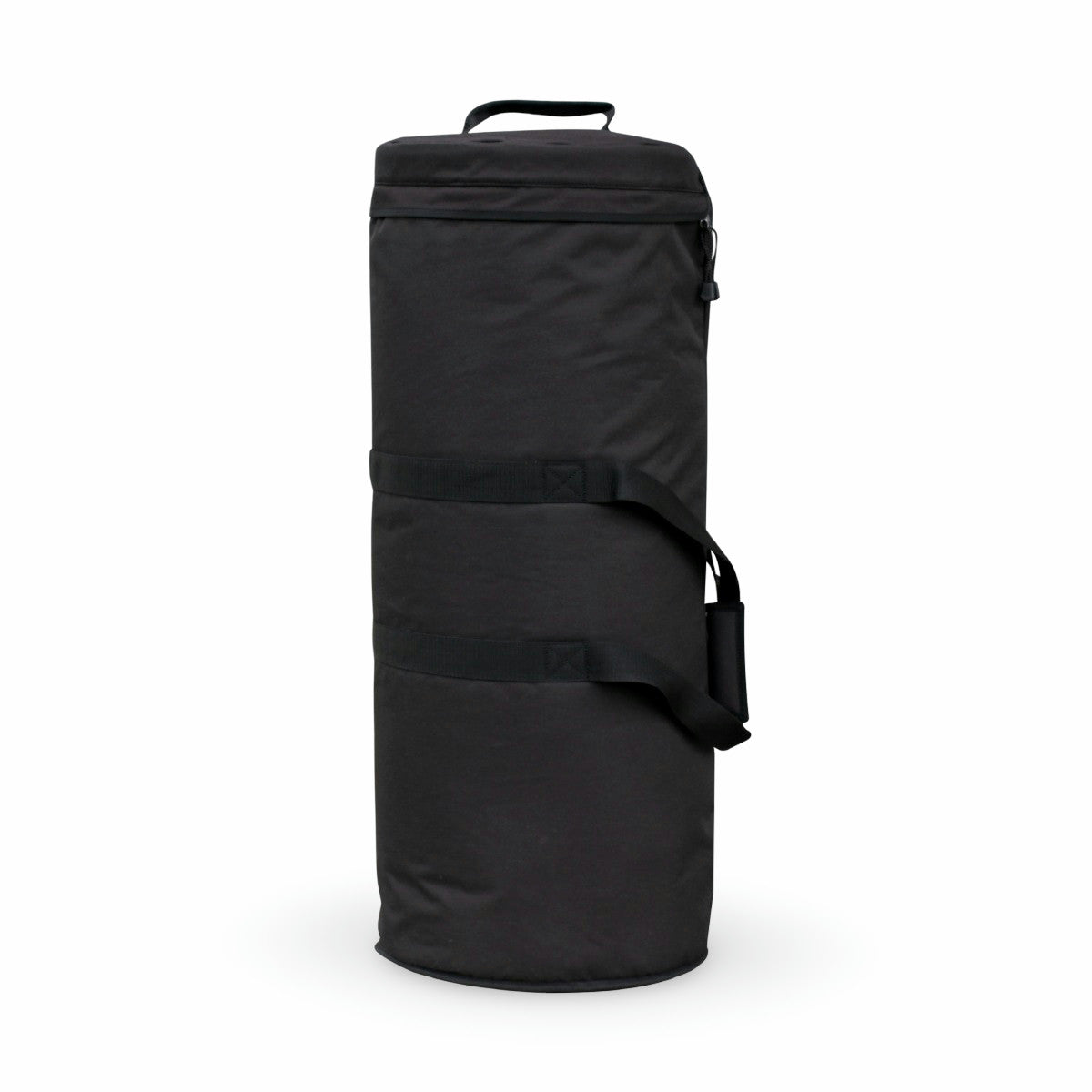

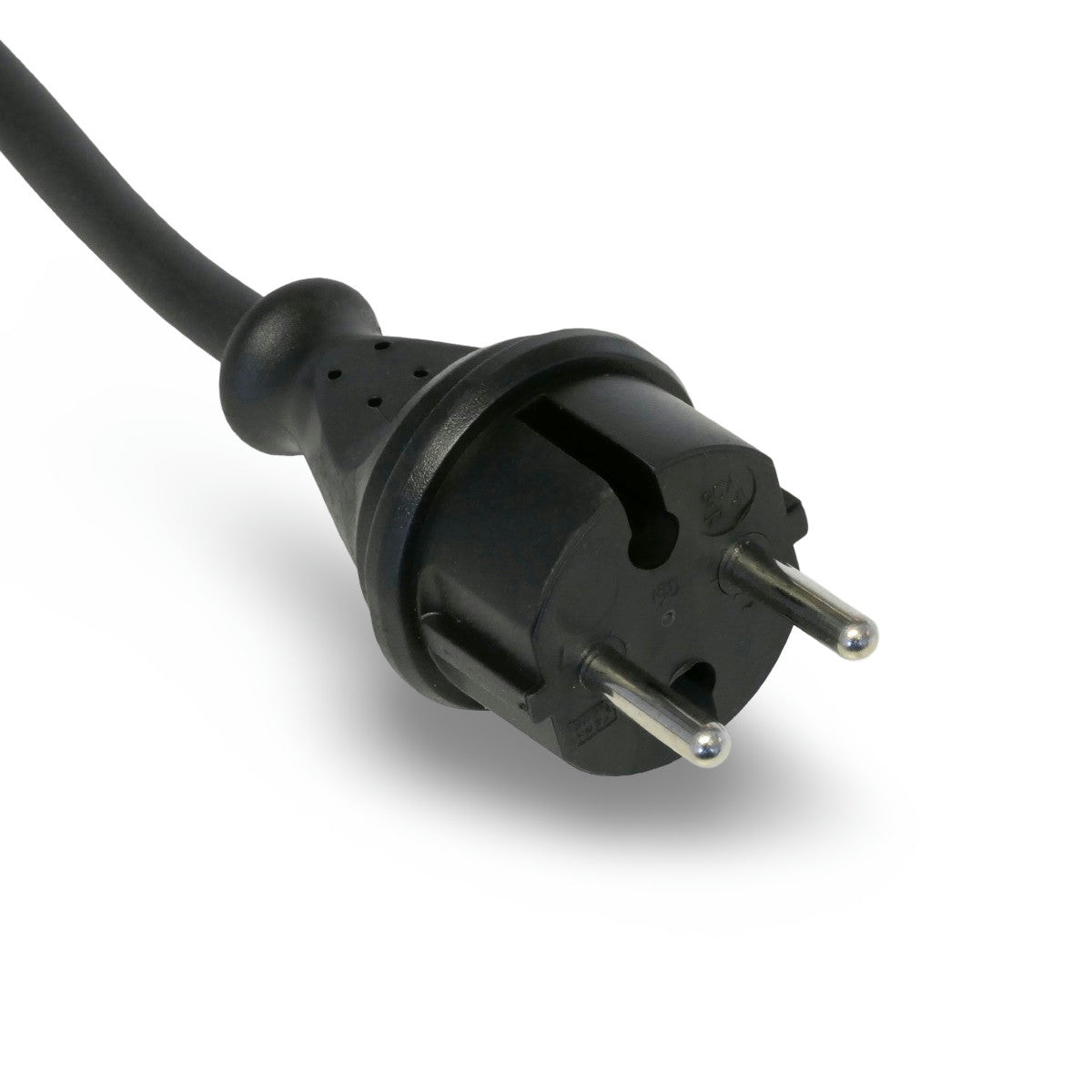

The luminaire is supplied with a 7.5 m cable. The cable type is H07BQ-F. The plug is Type E+F (CEE 7/17). A carrying bag is included. This supports quick packing and clean transport.

Basic technical data

Electrical behaviour for generators and site power

The POWERTUBE II L is suited for real site grids. It has defined inrush behaviour. Inrush current is 200 A. The duration is 209 µs. This helps when you plan multiple luminaires on one line. On a B10A fuse, use one unit. On a B16A fuse, use up to two units. On a C10A fuse, use up to two units. On a C16A fuse, use up to four units. Always follow local rules and cable lengths.

Safety and compliance details

Photobiological safety is classified as risk group 0. The luminaire carries CE marking. It also carries the D-mark. A filament test at 850 °C supports robust material selection. These details matter in public spaces and industrial sites.

Service mindset and lifecycle

Many parts are designed to be replaceable. This supports long product life. Use the carrying bag during transport. Keep the opal cover clean. This maintains uniform output. Store the cable without tight bends. This protects the jacket and conductors.

Typical setup ideas

For quick tasks, place it on the floor. For maximum coverage, mount it on a tripod. Raise it above head height. This reduces glare at eye level. For narrow access routes, suspend it from the handle. Use a strap and a safe anchor point. This keeps the ground clear and reduces trip hazards.

Why teams choose this format

Tube-style 360° lighting changes the workflow. Light comes from all sides. Shadows get softer. You need fewer fixtures. Setup becomes quicker. Cable routing becomes simpler. The work zone looks more uniform. This improves comfort during long shifts. It also helps with safety checks and inspections.

NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
