Large area luminaire POWERTUBE II L 230V AC on/off
Hurry up, only 3 items left in stock.
Product overview

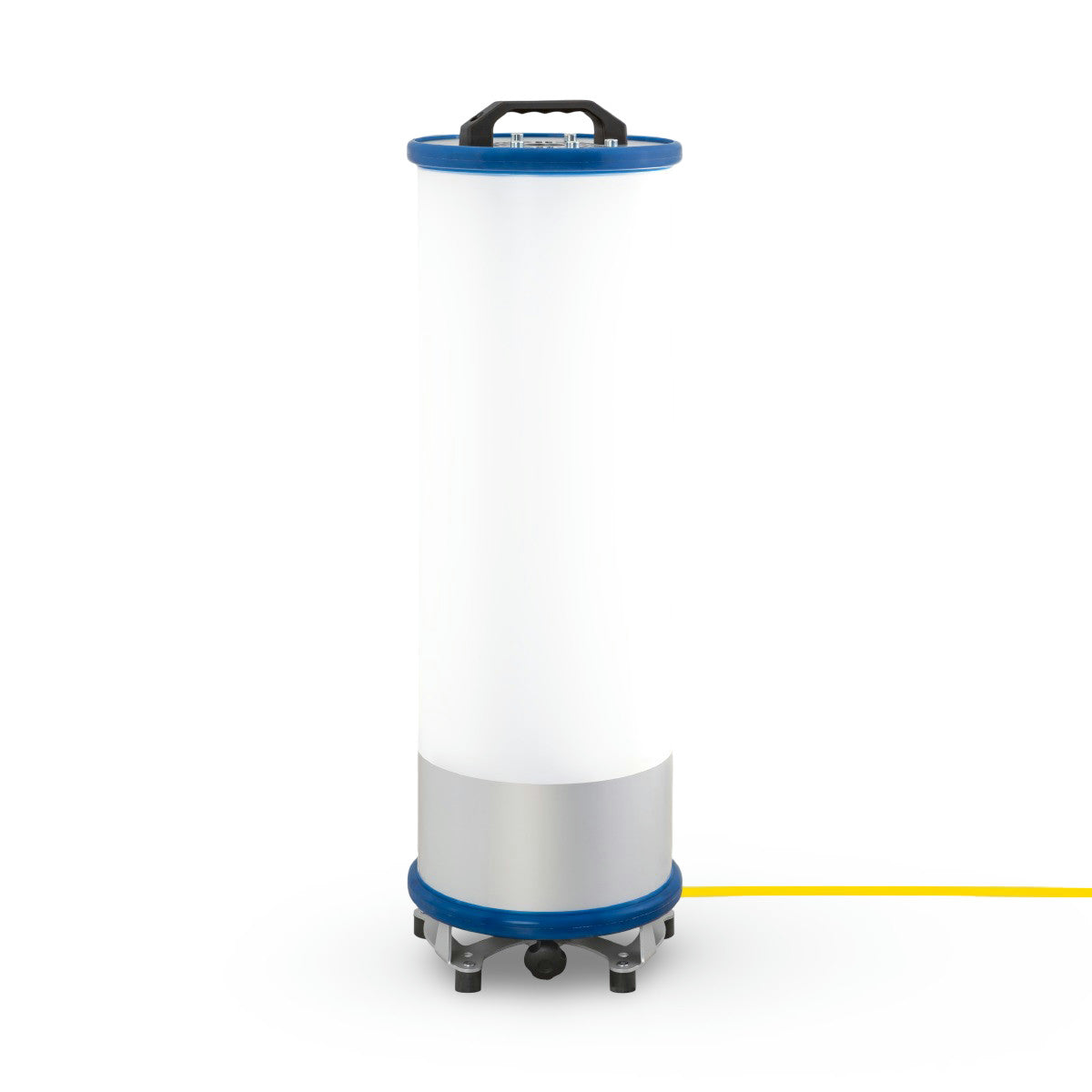

The SONLUX POWERTUBE II L is a portable large-area LED luminaire built to light up big zones fast. Its tube design creates a wide, soft light field that wraps around people and objects. This reduces strong shadows and makes the work area feel more even. It is a practical solution for sites where you want fewer fixtures, fewer cables, and quicker setup.

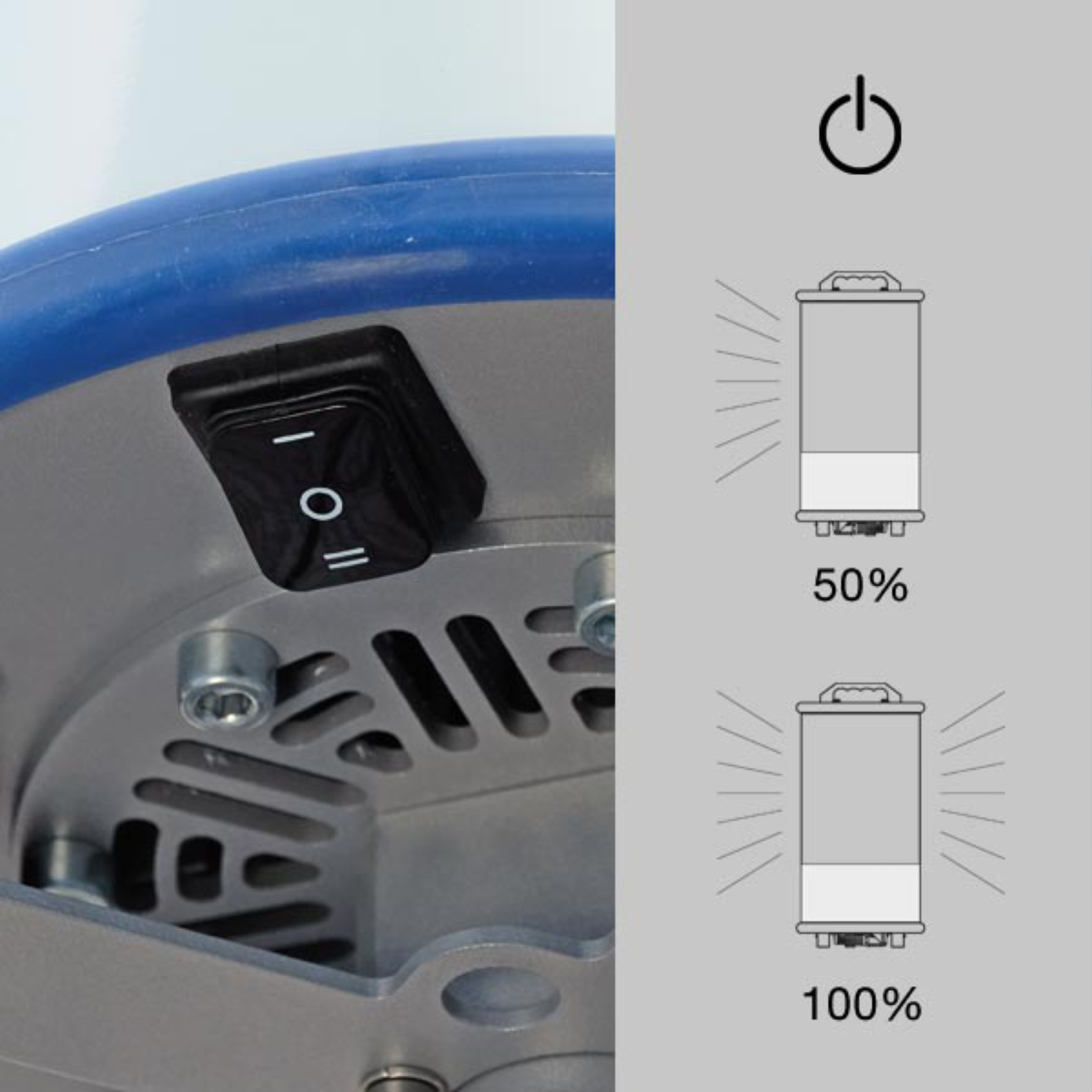

This specific version is controlled by a rugged toggle switch. You can turn the luminaire off, run it in a half-side mode (180°), or switch to full-area mode (360°). That makes it easy to adapt the output to the scene without any extra controllers or dimming gear. Use 180° when you light a wall side, a corridor edge, or a staged work zone. Use 360° when you need full-area coverage for teams that move around the lamp.
Two operating modes that match real tasks
On many sites, full power is not always needed. The POWERTUBE II L gives you a simple way to choose the right mode. In 180° mode, the lamp delivers a rated luminous flux of 25,000 lm with 186 W system power. In 360° mode, it reaches 50,000 lm with 372 W. The switch is quick and intuitive. It supports better energy use and helps reduce unnecessary glare when you only need light in one direction.
Uniform light with a clear 5000 K tone
The luminaire produces a clean 5000 K light, suitable for demanding work and clear visibility. CRI is 80, which supports reliable recognition of colours, labels, and safety markings. The opal cover is made of impact- and break-resistant polycarbonate. It spreads the light smoothly and reduces harsh contrasts. The result is comfortable illumination that works well for long shifts, inspections, and continuous work.
Rugged build for repeated transport
The housing is aluminium with a powder-coated finish. The base plate is steel and powder-coated. Rubber feet improve stability and help protect indoor floors. The luminaire is rated IP65, which supports use in dusty areas and in rain or spray. Impact resistance is IK08, so it handles typical knocks during repositioning and packing. A high-temperature filament test rating supports robust material choices for demanding environments.
Flexible mounting on stands, floors, and overhead points

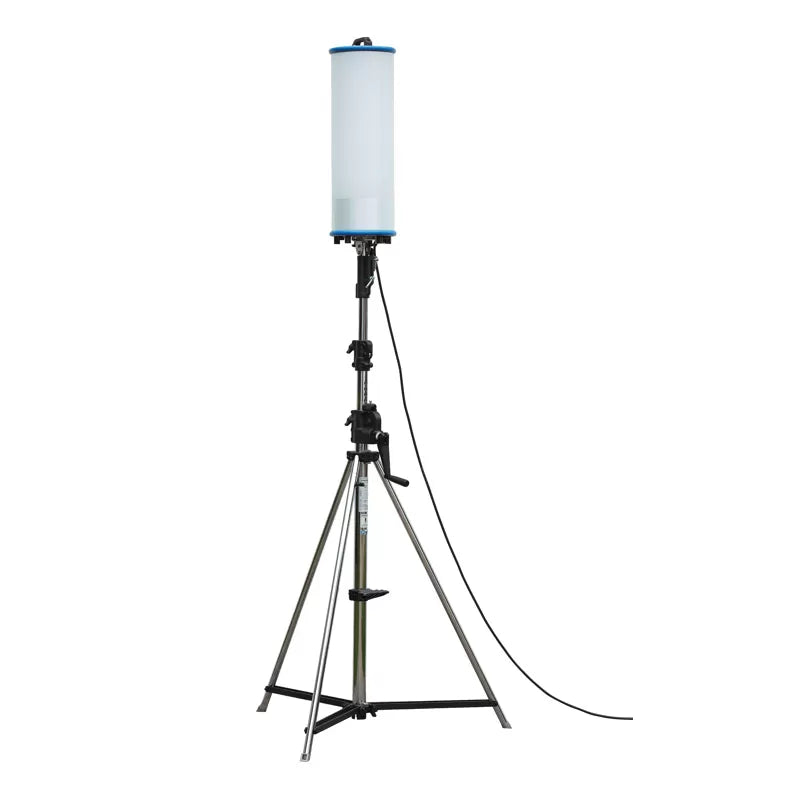

The POWERTUBE II L can be used on a tripod, as a floor lamp, or suspended. It includes an integrated holding sleeve for a 30 mm stand spigot in accordance with DIN 14640. This matches common professional tripods and masts used on construction sites and event setups. The top handle supports safe carrying and can also be used for suspension when an area must stay clear of obstacles.
Electrical planning made easier
Temporary power and generators can be sensitive to inrush peaks. This luminaire has defined inrush behaviour, which helps planning multiple units on one circuit. Inrush current is 200 A with a duration of 209 µs. A practical guideline is: one unit on B10A, up to two units on B16A, up to two units on C10A, and up to four units on C16A. Always apply local electrical rules, cable lengths, and site conditions.
What is included

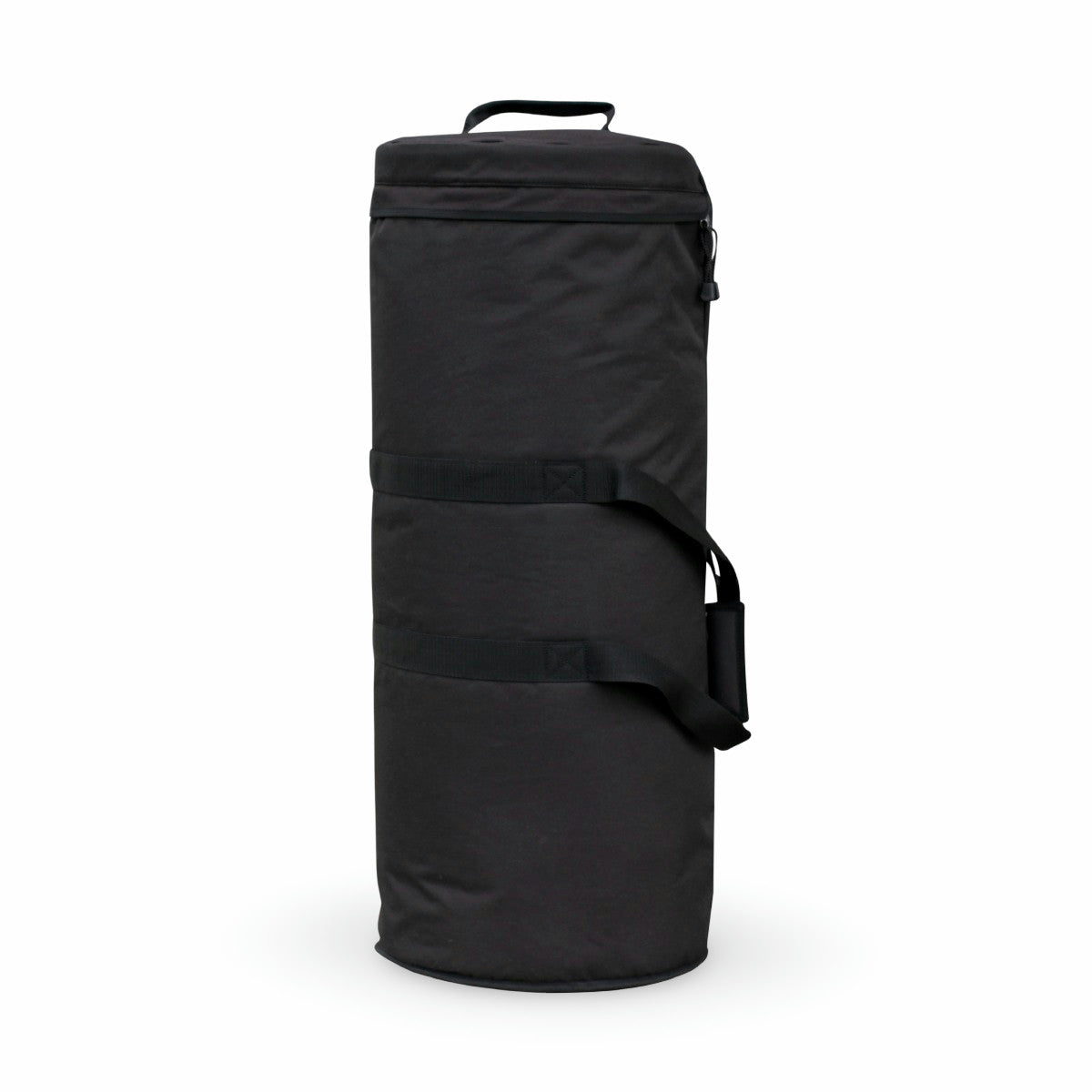

Every deployment starts with transport and storage. This product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
Basic technical specifications
| Product | POWERTUBE II L |
| Article | 73P03000-0006 |
| Colour | Grey |
| Diameter | 270 mm |
| Height | 850 mm |
| Weight | 13.42 kg |
| Light source | LED |
| Colour temperature | 5000 K |
| Colour rendering index | CRI 80 |
| Operating modes | Toggle switch: Off / 180° / 360° |
| Rated luminous flux | 25,000 lm (180°) | 50,000 lm (360°) |
| System power | 186 W (180°) | 372 W (360°) |
| System efficiency | 134 lm/W (both modes) |
| Glare evaluation | RUG (4H/8H): 28.8 | 30.4 |
| Beam angle | Down 180° | Up 180° (mode-dependent distribution) |
| LED rated life | 50,000 h (L80/B50) |
| Photobiological safety | EN 62471, Risk group 0 |
| Driver | Converter |
| Control | On/off (via toggle switch) |
| Input voltage | 220–240 V AC, 50/60 Hz |
| Inrush | 200 A / 209 µs |
| Recommended units per fuse | B10A: 1 | B16A: 2 | C10A: 2 | C16A: 4 |
| Protection rating | IP65 |
| Impact resistance | IK08 |
| Protection class | Class II |
| Filament test | 850 °C |
| Ambient temperature | -20 °C to +25 °C |
| Safety marks | D-mark, CE |

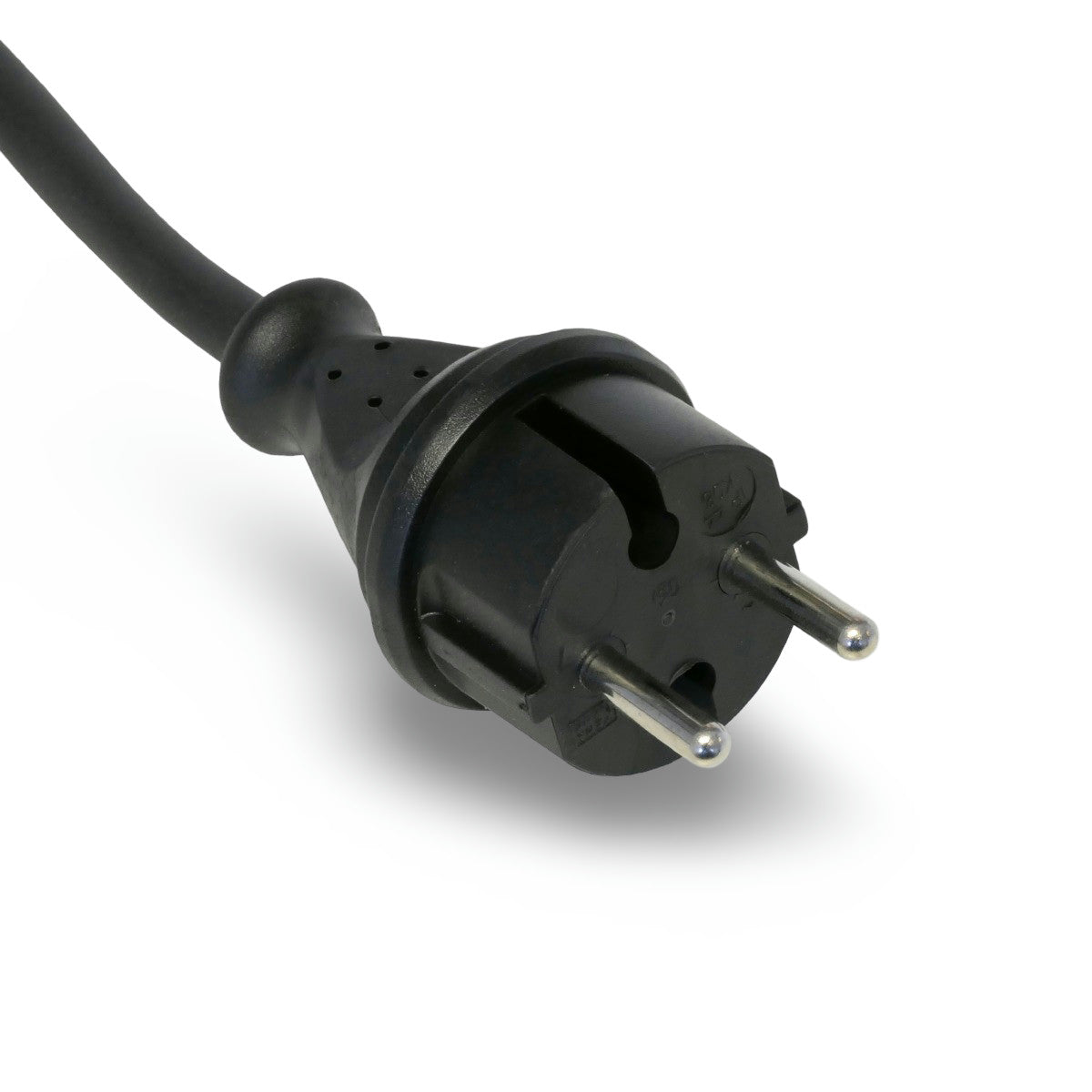

| Supply cable / plug | 5 m, H07RN-F, 2 × 1.0 mm² / Type E+F (CEE 7/17) |
| Included | Textile carrying bag |
Where this version shines
The switchable 180° / 360° concept is ideal when your workspace changes during the day. Start in 180° mode to light a defined work face. Switch to 360° when the team expands into a wider zone. This reduces the need to reposition multiple lights. It also helps keep the cabling simpler and improves site organisation.
Quick setup tips
- Mount the luminaire higher to reduce eye-level glare.
- Use 180° mode for corridors and boundary lighting.
- Use 360° mode for teams working all around the lamp.
- Route cables away from walkways to reduce trip risks.
- Keep the opal cover clean for consistent output.
NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
