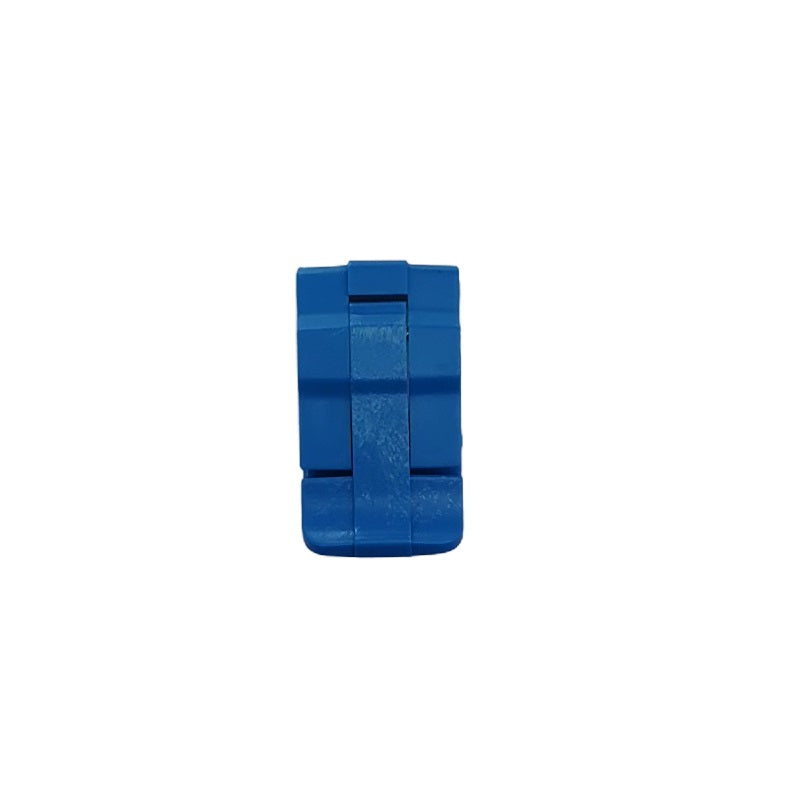

Replacement Latch for Peli Protector 36mm Blue

A Peli Protector case is only as watertight as its weakest latch. When one of those latches cracks, loses its spring, or simply wears out after years of being snapped open and shut in the field, the whole case stops doing its job properly — the lid no longer pulls down with that reassuring, airtight bite. This genuine Peli replacement latch in blue restores that bite, bringing a tired case back to full working order without the cost of replacing the case itself.

Measuring 36 mm wide, it is the standard latch size fitted across a large part of the Peli Protector range. Whether you are repairing a single damaged clasp or building up a small kit of spares to keep alongside your gear, this is the part that keeps your investment sealed, secure, and ready to travel.

Why a healthy latch matters

The latches are what generate the clamping force that presses the lid against the case’s O-ring seal. That compression is exactly what makes a Peli case watertight, dustproof, and crushproof. A latch that no longer closes firmly leaves a gap in that seal — and a gap is all it takes for water, fine dust, or pressure changes to reach the equipment inside.

Replacing a failed latch is therefore not a cosmetic fix. It is what returns the case to its rated level of protection, so that the camera body, drone, medical kit, or instrument it carries stays as safe as the day the case left the factory.

Designed the way every Peli latch is designed

This is a two-step, double-throw latch — the same secure mechanism Peli uses throughout the Protector series. The first throw releases the catch; the second opens the lid. In reverse, closing the latch pulls the lid down in two stages, building up even compression across the seal. The result is a closure that opens easily with one hand, yet stays firmly shut under transport stress, rough handling, and the vibration of a cargo hold.

The body is moulded from impact-resistant material built to survive the same punishing conditions as the case itself: knocks, drops, temperature swings, UV exposure, and repeated daily use. The finish is blue, so it is easy to match to a blue case or to mark out a particular case in a stack of otherwise identical black ones.

A genuine Peli part — fit and finish you can trust

This is an original Peli replacement latch, manufactured to Peli’s own tolerances. That matters more than it might seem. A latch that is even slightly off-specification will not generate the correct clamping pressure, which compromises the seal and accelerates wear on the hinge points. Because this part is made to the exact original dimensions, it drops into place and clamps with the same force as the latch it replaces — no filing, no shimming, no improvising.

Buying genuine also keeps your case eligible for Peli’s legendary lifetime guarantee. Using non-original parts is one of the few things that can put that cover at risk, so a genuine latch protects both the case and the warranty behind it.

Fitting the latch

The latch is held in place by a hinge pin. Replacing it is a straightforward job with the right approach and no special workshop tools.

The correct method

The hinge pin is removed by tapping it out with a punch and a hammer — never a screwdriver. A screwdriver slips, chews up the pin, and can crack the case mountings. Support the case, line up a suitable punch against the end of the pin, and drive it out with light, controlled taps from the hammer. Lift away the old latch, seat the new one in position, and tap the pin back in the same way until it sits flush. Work patiently, keep the pin square to the holes, and the latch will be back in service in minutes.

A small kit goes a long way

Because the procedure is so simple, many professionals keep a spare latch or two in their case-maintenance kit. A snapped latch on the morning of a shoot, an expedition, or a deployment is no longer a problem when the replacement and a punch are already to hand.

Who this latch is for

This replacement part earns its place anywhere Peli Protector cases are worked hard. Photographers and film crews keep camera and lens cases sealed between locations. Drone operators protect airframes and batteries on the move. Field researchers and survey teams rely on watertight cases for sensitive instruments far from any repair shop. Emergency responders, security teams, and military users need their equipment cases ready at a moment’s notice — and a single worn latch should never be what holds them up.

For all of them, the ability to renew a latch on the spot — rather than retire an otherwise perfect case — is exactly the kind of practical, long-term value that makes Peli cases worth owning in the first place.

Key features

• Genuine Peli replacement part — made to Peli’s original tolerances for a precise, drop-in fit.
• Two-step, double-throw latch — opens easily with one hand, stays firmly locked in transit.
• Restores the seal — returns the case to its full watertight, dustproof, and crushproof rating.
• Impact-resistant build — engineered to withstand the same harsh conditions as the case.
• Standard 36 mm width — fits a large part of the Peli Protector range.
• Blue finish — ideal for matching or identifying a case in a stack.
• Pin-mounted — fitted with a punch and hammer; no special tools required.
• Keeps your warranty intact — genuine parts maintain eligibility for Peli’s lifetime guarantee.

Basic data

• Type: replacement latch for Peli Protector cases
• Colour: blue
• Width: 36 mm
• Height: 65 mm
• Weight: 0.034 kg
• Mechanism: two-step, double-throw
• Mounting: hinge pin (pin not included)
• Part type: genuine Peli spare part

If you bought your Peli case from Drava and need this replacement latch, get in touch. Under Peli’s lifetime warranty you may be entitled to the part at no extra cost.
