Skid-Mate Pallet Pad - Green (M8) - from 13kg to 23kg

Skid-Mate Green M8 – reusable pallet damping pad for lighter loads

Many shipping problems start at the pallet base. Forklifts, dock plates, and rough floors create repeated shocks. Long transport adds constant vibration. Even when a crate looks strong, the load inside can suffer. Skid-Mate Green adds a damped interface under your pallet base. It helps reduce transmitted impact and vibration. This can lower the risk of damage to sensitive equipment.

Skid-Mate Green is the light-load class in the system. It is designed to perform best when each pad carries a defined weight range. That makes results more predictable. It also makes planning simple and repeatable. Our version is built for metric installations. It uses an M8 threaded fitting for mounting.

What makes the Green version different

Green is intended for lighter loads per pad. It is a good choice for smaller pallet builds. It is also useful when you can use more pads to spread weight evenly. The target load range is 13.6–22.7 kg per pad. This range corresponds to 30–50 lb per pad. Keep each pad within the range for stable damping behavior.

The pad acts like a compact air-damped cushion. Under load, it compresses to absorb energy. During transport, it reduces vibration transfer into the pallet structure. That helps protect the entire load, not just one component. It also reduces “rattle” inside stacked cases or flight cases.

Sold as pad only, for your mounting standard

This product is the Skid-Mate Green pad only. We sell it without screws. We also sell it without the spacer. The spacer is a separate product. Use it only when you need additional clearance. This keeps your build modular and cost-effective.

The M8 threaded fitting supports metric hardware. That matters when your pallet base is built to European standards. It also simplifies spare parts and service in the field. Choose your own bolt length and washer solution. Match it to your frame thickness and base design.

How to size a pallet build

Start simple

A common starting point is one pad per corner. That gives four support points. For lighter loads, you can also increase pad count. More pads help keep each pad in its ideal range. They also improve stability for tall loads.

Check the load per pad

Divide total load weight by pad count. Aim for 13.6–22.7 kg on each Green pad. If you are above the range, add pads or select a higher load class. If you are below the range, reduce pads or bundle shipments.

Keep weight distribution even

Damping works best with balanced loading. Avoid concentrating weight on one side. Keep the pallet base rigid and flat. Ensure full contact between pad and mounting surface.

Where it improves day-to-day logistics

Skid-Mate is especially useful when you ship sensitive loads often. It can be reused across many cycles. It is compact, so it does not waste pallet footprint. It is also quick to integrate into a skid frame. Once a build is standardized, packing becomes faster. Quality control also becomes easier.

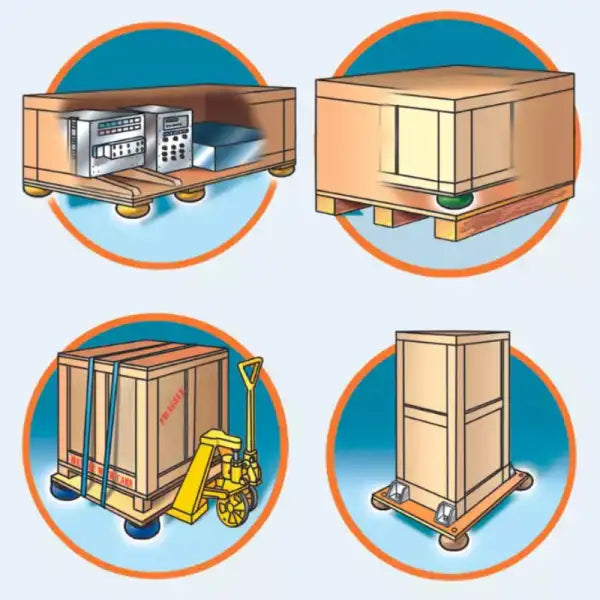

Green is a practical choice for lighter builds. Think smaller cases fixed to a pallet base. Think modular racks with modest weight. Think kits that must arrive ready to use. The pad reduces harsh input at the pallet level. That gives your packaging an extra safety layer.

Dimensions and handling

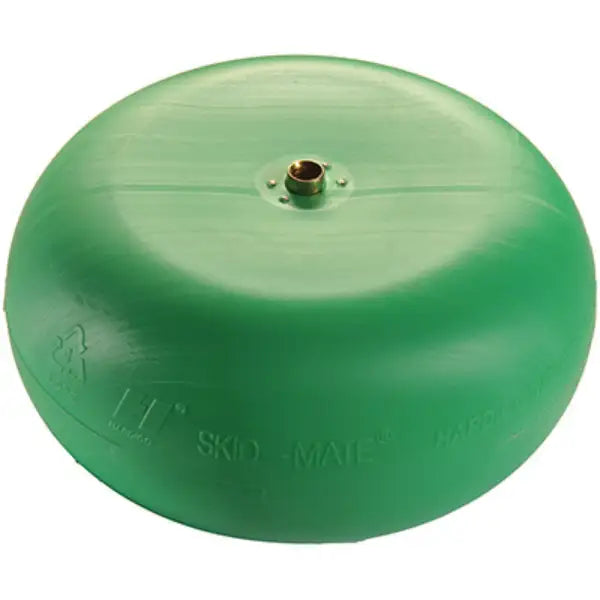

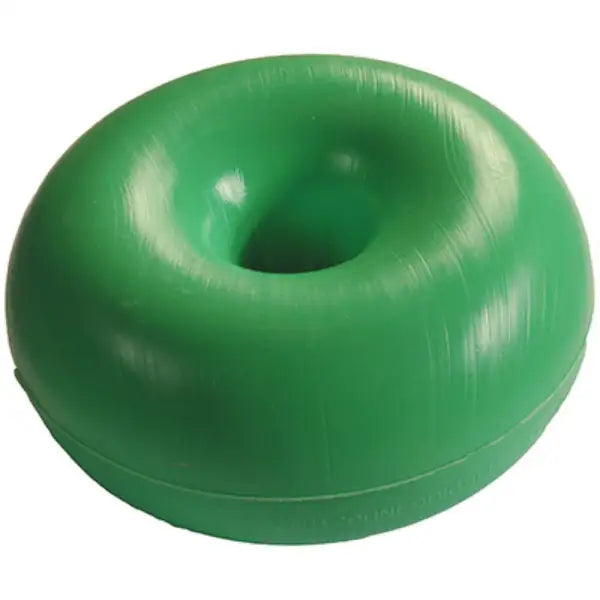

The pad is a compact, round element. Typical geometry is about 153 mm in diameter. Height is about 73 mm without the spacer. If you require more clearance, use the separate spacer product. Do not improvise with random blocks. Consistent height matters for stability.

What you receive

You receive one Skid-Mate Green M8 damping pad. Screws are not included. Spacer is not included. If you need the spacer, order it separately.

Basic technical data

Notes

Performance depends on correct installation and loading. Keep each pad within the load range. Avoid uneven contact and point loads. Inspect pads regularly in high-turn logistics. Replace pads that show deep deformation or damage.
