Skid-Mate Pallet Pad Orange (M8) - from 56kg to 102kg

Skid-Mate Orange M8 – Heavy-Load Pallet Damping Pad for Shock and Vibration

Heavy pallets face a physics problem that lighter ones largely avoid: the more mass, the harder every forklift bump, dock transition, and braking event hits your cargo. A rigid base transmits those forces directly into whatever you are shipping — electronics, instruments, precision equipment, or flight cases full of gear. Skid-Mate Orange M8 is the answer for high-weight configurations. It creates a damped, resilient interface between the warehouse floor or truck bed and the pallet base, absorbing and dispersing the energy before it reaches your load.

Orange is the heavy-duty class within the Skid-Mate colour system. It is rated for loads that would exceed the capacity of the Green, Tan, Yellow, or Blue grades — all designed for lighter duty. Choosing the right colour class is critical: an overloaded pad compresses fully and stops damping. An underloaded pad never engages its working zone. Orange is calibrated for the range where heavy industrial pallets actually operate.

This listing is for the M8 threaded version — the standard metric fitting, compatible with common European hardware. You receive the pad only. Screws and the optional spacer are sold separately. The spacer is only required when additional pallet-jack clearance beneath the base frame is needed.

Load Rating: Orange Class

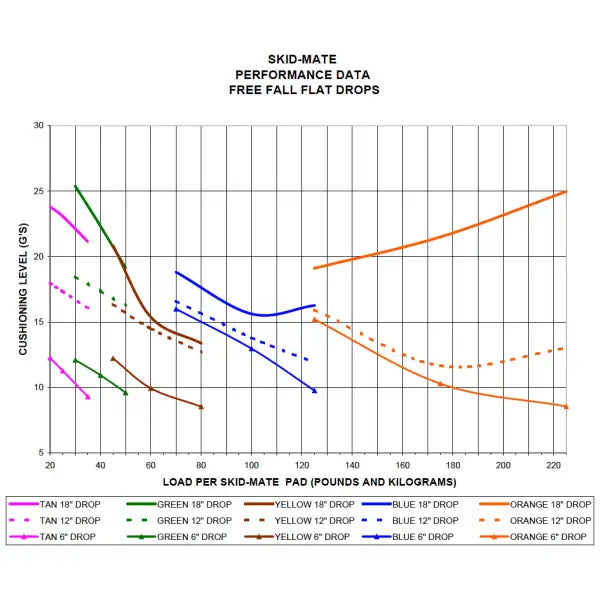

The Orange pad is rated for 56.7–102.1 kg per mounting point (125–225 lb per pad). This range makes it well suited for pallets carrying electronics racks, dense equipment, heavy flight cases, and industrial assemblies where each support point bears a substantial share of the total load. Operating within the rated range is the key to consistent shock absorption and long pad service life.

Who Chooses Orange

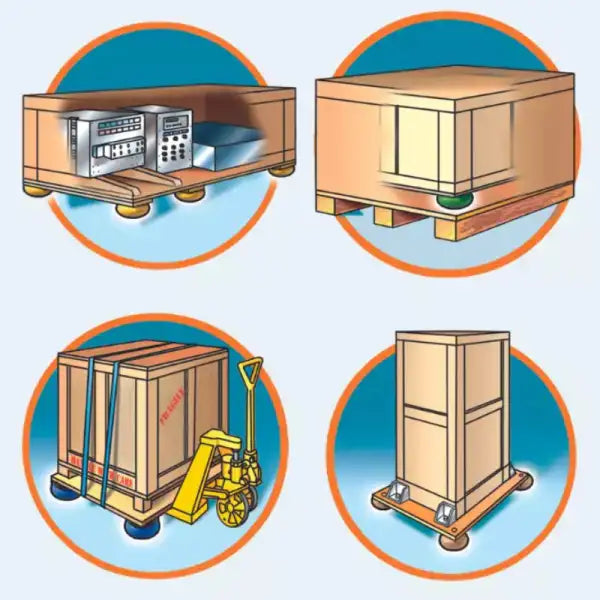

Orange is the preferred grade for broadcast and touring crews running heavy rack pallets, for logistics teams handling dense electronics shipments, and for industrial operations moving equipment where vibration-induced damage would carry a high cost. When your cargo is expensive and difficult to replace, improving isolation at the pallet level is a practical, cost-effective measure. It is also the right choice whenever you want to reduce pad count on a heavy build while staying within a safe load-per-pad window.

Sold as Pad Only

Because mounting configurations vary widely — wooden pallets, aluminium skid frames, steel base plates, custom fabrications — this pad is sold without fasteners. You select the hardware appropriate for your base material, control bolt length and washer specification, and maintain consistent torque across your equipment fleet. The M8 metric thread keeps your spares inventory straightforward and aligned with standard European workshop stock.

Planning Your Pad Configuration

Start with four corners

One pad per corner is the baseline. Four support points provide stable, balanced isolation. For long pallets or top-heavy loads, add mid-span pads to reduce frame flex and improve load sharing.

Calculate load per pad

Divide total pallet weight by the number of pads. Each Orange pad should carry between 56.7 and 102.1 kg. If the per-pad load falls outside this range, adjust pad count or switch to a different colour class.

Ensure flat, balanced contact

Damping requires uniform contact at every support point. Warped bases, point loads, or pads that are not fully engaged will reduce performance. Use a rigid, flat pallet frame and confirm that every pad is carrying its share of the load.

Dimensions and Clearance

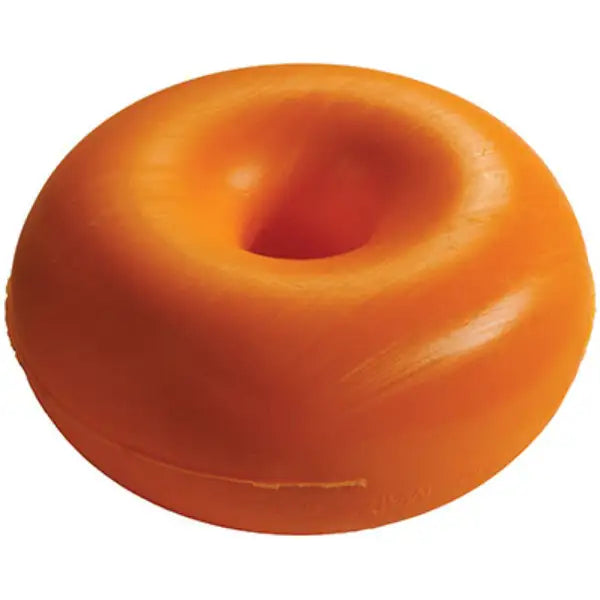

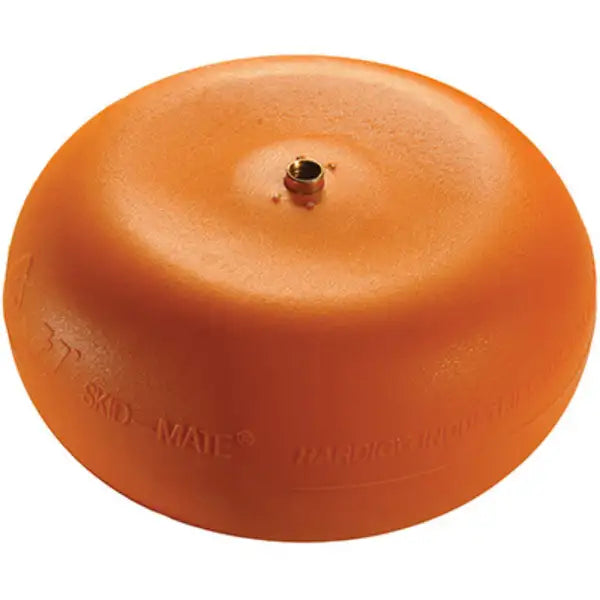

The pad is a compact, round element designed for pallet base integration. Typical diameter: approx. Ø153 mm. Typical height: approx. 73 mm without spacer. If pallet-jack clearance is insufficient beneath the base frame, the optional spacer extends the height. Do not substitute with improvised shims — consistent height across all pads is essential for even load distribution and effective damping.

What You Receive

One Skid-Mate Orange M8 damping pad. Screws are not included. Spacer is not included — order separately if required.

Technical Specifications

Maintenance Notes

Inspect pads periodically, especially in high-throughput logistics. Pads showing deep permanent deformation or physical damage should be replaced. Consistent loading within the rated range extends service life significantly.
