Skid-Mate Pallet Pad - Tan (M8) - from 9kg to 16kg
Available in stock (1546)
Skid-Mate Tan M8 – pallet damping pad for very light, sensitive loads
Many shipments fail without a dramatic accident. A pallet is loaded, secured, and shipped correctly. Then it spends hours on vibrating roads and rough warehouse floors. Small impacts repeat hundreds of times. That is often enough to loosen fittings, crack housings, or damage calibration. Skid-Mate Tan is designed to reduce those forces at the source. It adds a damped interface between the pallet base and the ground. This helps protect sensitive loads during handling and transport.
Tan is the lightest load class in the Skid-Mate system. It is made for loads that are too light for higher classes. This is important, because damping elements work best inside a target range. When a pad is correctly loaded, it compresses as designed. It can then absorb shocks and reduce vibration transfer. If a pad is overloaded, it bottoms out. If it is underloaded, it becomes less effective. Tan helps you stay in the sweet spot for very light pallet builds.
Our version is built for European installations. It uses an M8 threaded fitting for metric mounting hardware. This listing is for the pad only. We sell it without screws and without the spacer. The spacer is a separate product. Use it only when additional clearance is required.
What the Tan load class is for
Skid-Mate Tan is designed for 9.1–15.9 kg per pad. This range corresponds to 20–35 lb per pad. It is ideal when your palletized load is light, yet sensitive. It is also useful when you can use more pads to distribute weight evenly. This improves stability and keeps damping consistent.
Tan is often chosen for compact kits, small instruments, or delicate assemblies. It can also help when the load has fragile internal parts. Examples include optical components, precise sensors, and lab devices. In these cases, reducing repeated vibration can be as important as impact protection.
Metric build with M8 fitting
The M8 fitting supports a clean, standardized mounting concept. Choose your own bolt length and washer setup. Match it to your pallet base thickness and your skid frame design. Hardware is not included, because builds vary. Some customers mount to wooden bases. Others mount to metal skid frames. The M8 standard keeps both options simple.
Simple sizing logic
A common starting point is one pad per corner. Then you calculate load per pad. Divide total load weight by pad count. Aim for 9.1–15.9 kg on each pad. Add pads if you exceed the range. Reduce pads if you are far below the range. Keep weight distribution even across the base.
Why pad-only matters
Many customers want control over mounting hardware. Some use stainless fasteners. Some use locking nuts. Some use thread lockers and torque specs. Selling pad-only makes integration cleaner. It also prevents incorrect screw selection. You get the pad that defines performance. You decide how it integrates into your pallet system.

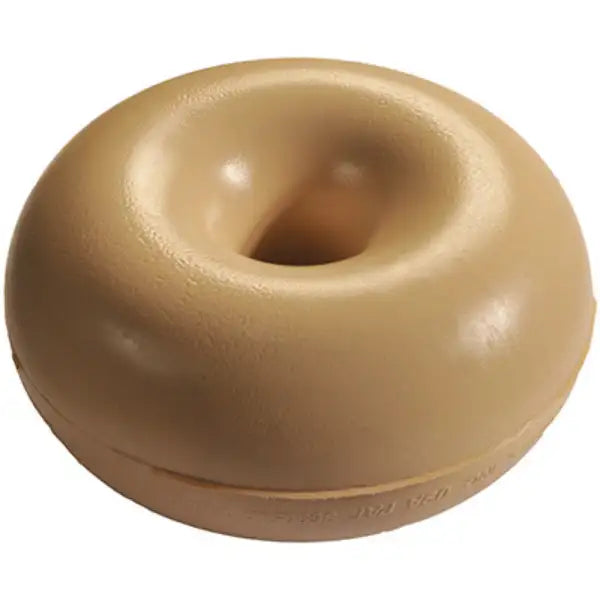

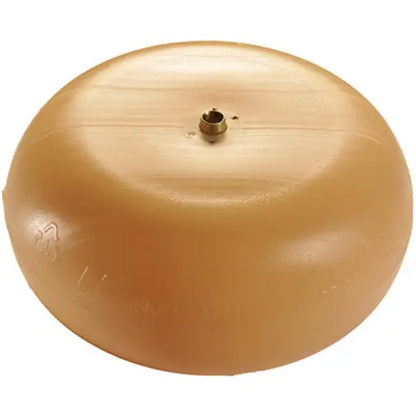

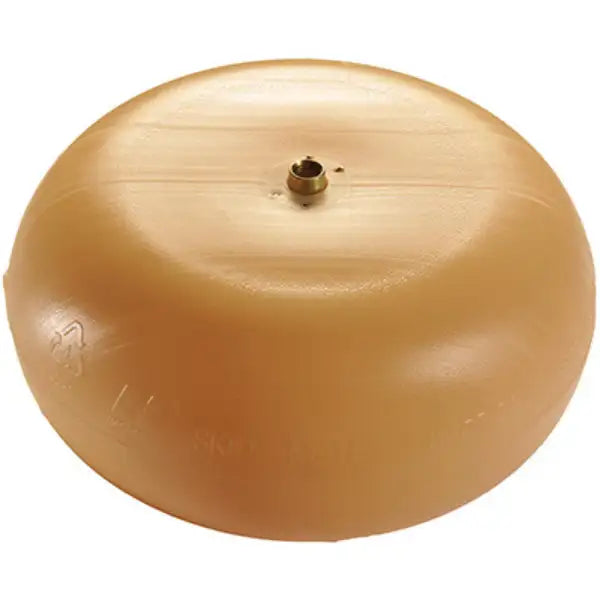

Dimensions and clearance
The pad is a compact, round element designed for pallet bases. Typical diameter is about 153 mm. Typical height is about 73 mm without the spacer. If you need additional pallet-jack clearance, use the separate spacer product. Do not improvise with random blocks. Consistent height matters for stability and load sharing.
What you receive
You receive one Skid-Mate Tan M8 damping pad. Screws are not included. Spacer is not included. If you need the spacer, order it separately.
Basic technical data
| Product type | Pallet damping pad / air-damped pallet cushion |
| Color / class | Tan (beige) |
| Load range per pad | 9.1–15.9 kg per pad |
| Diameter | Approx. Ø153 mm |
| Pad height | Approx. 73 mm (without spacer) |
| Thread / fitting | M8 |
| Included | Pad only (no screws, no spacer) |
| Product Code | Tan 35-630-035TM With T-Nut (metric M8 option) |
Notes
Correct loading is essential. Keep each pad within the load range. Avoid point loads and uneven contact. Use a rigid pallet base for stable load sharing. Inspect pads regularly in high-turn logistics. Replace pads that show deep deformation or cracks.
Note: Any accessories and the case shown in photos are for illustrative purposes only and are not included.
